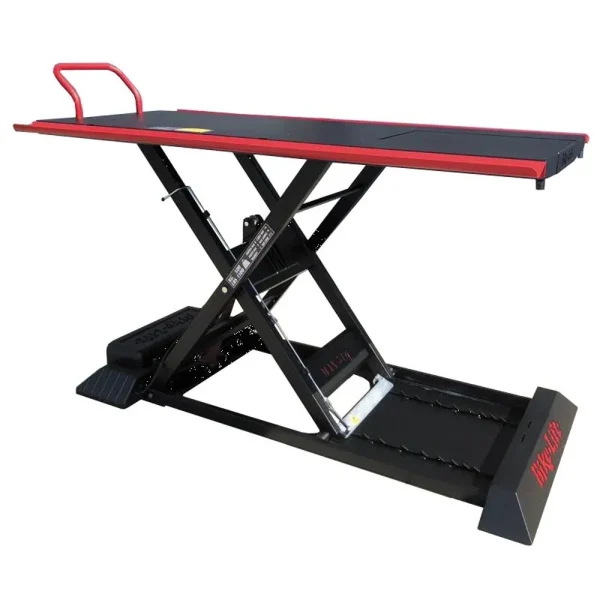

Bike Lift MG-516-003 Max 516 Scissor Lift

The Bike Lift Max 516 is a professional electro-hydraulic scissor lift built for precision, reliability, and safety in any motorcycle workshop. With a wide tabletop design and reinforced structure, it offers a stable and spacious working surface—ideal for everything from lightweight motorcycles to large touring bikes up to 500 kg.

The lift is powered by a robust electro-hydraulic pump and operated through a simple manual button switch, ensuring smooth and controlled lifting. It features eight mechanical locking positions for maximum safety at various heights, along with a drop gate panel (60 × 36 cm) for convenient rear-wheel removal and maintenance.

Equipped with reinforced loading ramps and a removable side tool shelf, the Max 516 provides the space and support needed for efficient and organized workshop use. The fan-cooled motor ensures continuous performance even in high-temperature environments, while a safety strap and Bike Lift’s proven engineering guarantee operator confidence and stability at all times.

Features:
• Electro-hydraulic scissor lift with manual button control
• Wide tabletop for comfortable, stable work
• Drop gate panel (60 × 36 cm) for easy wheel removal
• Eight mechanical locking points for total stability and safety
• Reinforced loading ramps and removable side tool shelf for added convenience
• Safety strap included for secure use
• Fan-cooled motor allows nonstop operation
• Powder-coated black and red finish for durability and corrosion resistance
• Branded run-up ramp (82 × 51 cm) included

Specifications:
• Brand: Bike Lift
• Model: Max 516
• Vendor Part Number: MG-516-003
• Application: Motorcycle
• Type: Scissor Lift
• Lift Method: Electro-hydraulic
• Lift Control: Electronic hand control
• Material: Steel
• Color/Finish: Black, Red
• Load Capacity: 500 kg (1102 lb)
• Maximum Height: 120 cm (47-1/4″)
• Minimum Height: 19 cm (7-1/2″)
• Platform Length: 220 cm (86-1/2″)
• Platform Width: 75 cm (29-1/2″)
• Working Surface (with side extensions): 230 × 130 cm
• Drop Gate Panel: 60 × 36 cm
• Run-Up Ramp: 82 × 51 cm
• Locking Positions: 8
• Weight: 250 kg
• Units: Each
