SW-Motech TRAX ADV Aluminium Case System 45L/37L Silver Voge DS625X 24-

Description

SW-Motech TRAX ADV Aluminium Case System 45L/37L Silver Voge DS625X 24-

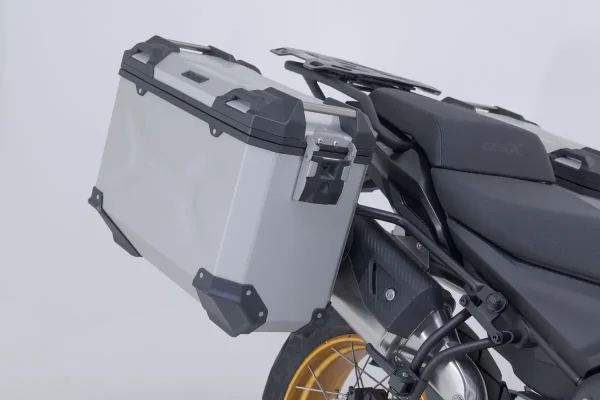

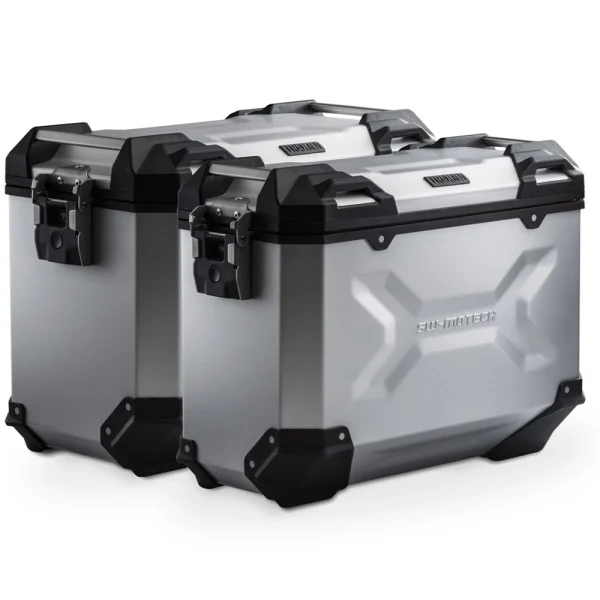

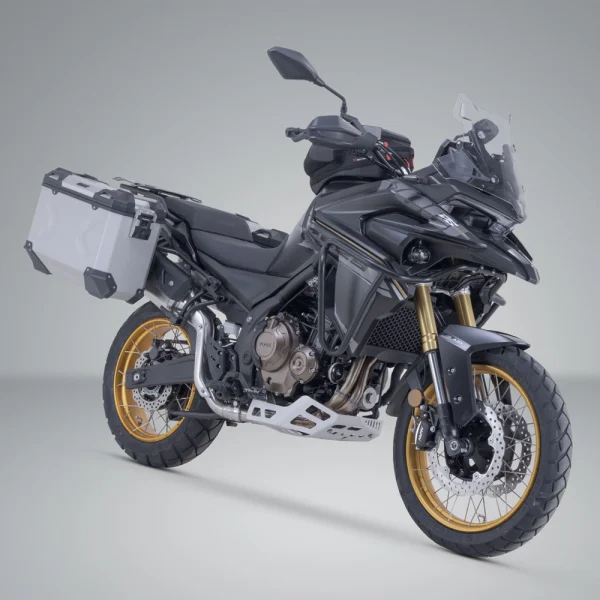

The SW-Motech TRAX ADV aluminium case system is a complete side luggage solution for the Voge DS625X. It combines a 45L TRAX ADV L case on the left and a 37L TRAX ADV M case on the right with removable PRO side carriers, adapter kits and a matching lock set.

Both cases are made from 1.5mm aluminium with an anodised finish for protection against oxidation and abrasion. Robot-guided welding and self-piercing riveting help prevent water and dust ingress, while removable lids, integrated tie-down points and reinforced corner protection support practical touring use. The bike-specific PRO side carriers use 2.5mm steel construction and quick-release fasteners for straightforward removal when luggage is not required.

Features:
• Complete TRAX ADV side case system
• 45L left and 37L right aluminium cases
• Total luggage capacity of 82L
• 1.5mm aluminium case construction
• Anodised finish
• Robot-guided welding and self-piercing riveting
• Large chamfered lower edges for improved ground clearance
• Glass-fibre-reinforced corner protection
• Completely removable lids with quick-release fasteners
• 4 integrated lid tie-down points per case
• Embossed aluminium panels for increased rigidity
• Stainless steel hinges
• Anodised aluminium carrying handles
• Replaceable lid seals
• Pressure-compensation membrane
• Lid limiters included

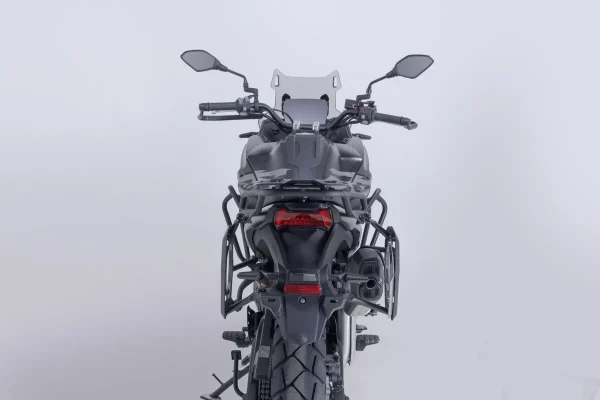

• Bike-specific PRO side carriers
• Removable quick-release carrier system
• Powder-coated steel carrier construction
• Matching TRAX lock set with PRO anti-theft protection
• One-key locking system
• Multi-tool key chain attachment included

Specifications:
• Model: TRAX ADV
• MPN: KFT.02.060.70000/S
• Colour: Silver
• Case Material: Aluminium
• Total Capacity: 82L

TRAX ADV L Case – Left:
• Capacity: 45L
• Dimensions: 49 x 28 x 37cm
• Material Thickness: 1.5mm
• Weight: Approx. 5.4kg

TRAX ADV M Case – Right:
• Capacity: 37L
• Dimensions: 49 x 23 x 37cm
• Material Thickness: 1.5mm
• Weight: Approx. 5.1kg

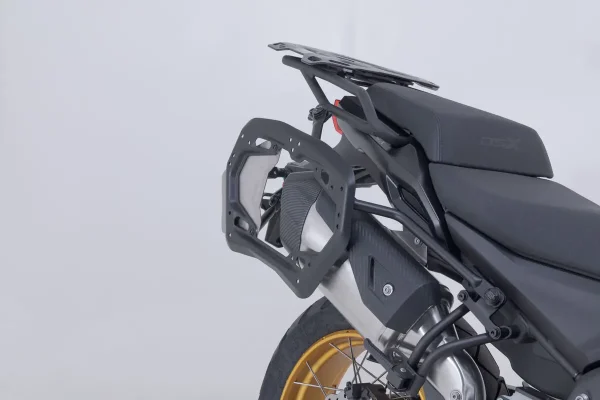

PRO Side Carriers:
• Material: Steel
• Material Thickness: 2.5mm
• Finish: Powder-Coated
• Width on Motorcycle: 45.5cm
• Weight: Approx. 5kg Total
• Removable: Yes

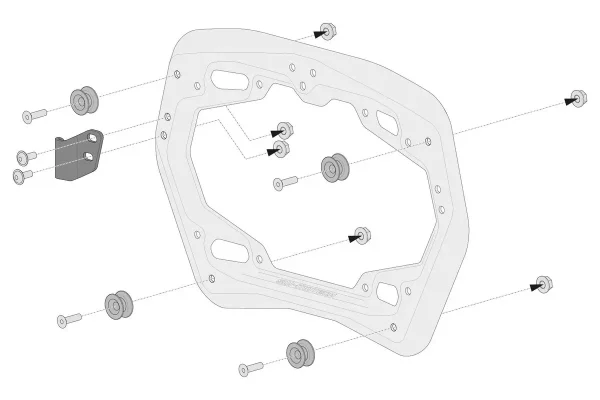

Adapter Kits:
• Designed for mounting TRAX or NANUK side cases to PRO side carriers
• Weight: Approx. 0.3kg Total

TRAX Lock Set:
• 9 matching locks
• Includes PRO side carrier anti-theft protection
• One key operates all locks
• Compatible with TRAX ADV and TRAX ION cases

Contents:
• 1 × TRAX ADV L Aluminium Case 45L – Left
• 1 × TRAX ADV M Aluminium Case 37L – Right
• 2 × PRO Side Carriers
• 2 × Adapter Kits for PRO Side Carriers
• 1 × TRAX Lock Set with PRO Anti-Theft Protection

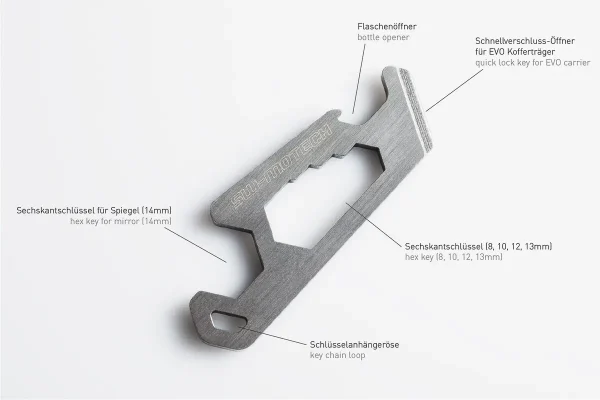

• 1 × Multi-Tool Key Chain Attachment
• 4 × Lid Limiters
• 2 × Storage Bags
• Mounting Instructions
• Mounting Material

Compatibility:
• Voge DS625X 24-
